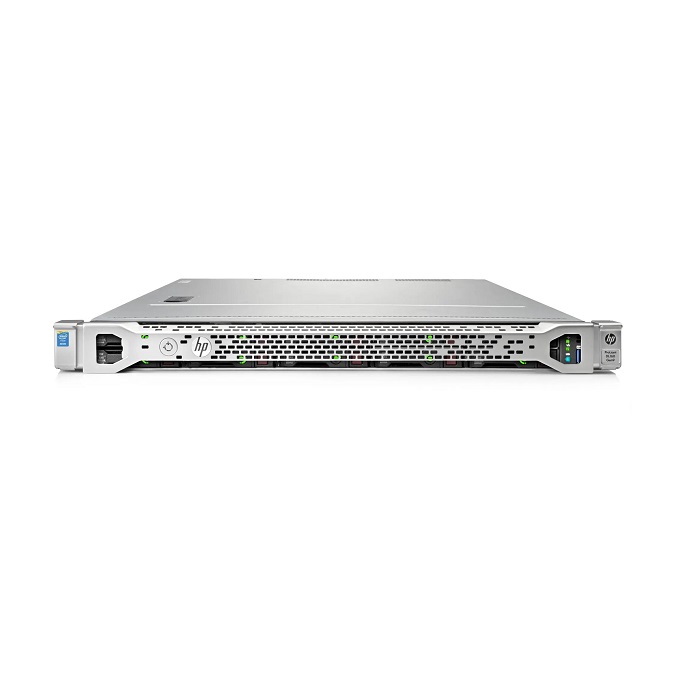

سرور HP DL160 Gen9 E5-2609v3 1P 16GB-R H240 8SFF 550W

GENERAL INFORMATION :
MANUFACTURER : HEWLETT PACKARD
MANUFACTURER PART NUMBER : 769505-B21
MANUFACTURER WEBSITE ADDRESS : WWW.HP.COM
PRODUCT NAME : PROLIANT DL160 G9 – 1U RACK MOUNTABLE SERVER(BASE MODEL)

PROCESSOR & CHIPSET :
PROCESSOR TYPE : INTEL XEON E5-2609V3/ 1.9GHZ
QUICKPATH INTERCONNECT : 6.40 GT/S
NUMBER OF CORES : 6-CORE
64-BIT COMPUTING : YES
COMPATIBLE PROCESSOR SOCKET : FCLGA2011-3
INSTALLED QTY : 1
MAX SUPPORTED QTY : 2
CHIPSET TYPE : INTEL C610 SERIES

CACHE MEMORY :
CACHE MEMORY TYPE : SMART CACHE
INSTALLED SIZE : 15MB
CACHE PER PROCESSOR : 15 MB

MEMORY :
INSTALLED SIZE : 16GB (2X8 GB) DUAL RANK X4 / 256 GB (MAX)
TECHNOLOGY : DDR4 SDRAM PC4-17000R (DDR4-1600)
FORM FACTOR : DIMM 288-PIN
TOTAL MEMORY SLOTS : 16

STORAGE:
HARD DRIVE : NONE
OPTICAL DRIVE : NONE

STORAGE CONTROLLERS:
STORAGE CONTROLLER NAME : SMART ARRAY H240
BUFFER SIZE : NONE
DISK DRIVE : 12GB/S SAS (SERIAL ATTACHED SCSI), 6GB/S SATA (SERIAL ADVANCED TECHNOLOGY ATTACHMENT)
SAS PORT LINK RATE : 12GB/S PER PHYSICAL LINK SUPPORTED
ARCHITECTURE : SERIAL ATTACHED SCSI (SAS), SERIAL ADVANCED TECHNOLOGY ATTACHMENT (SATA)
SAS CONNECTORS : 2X4 INTERNAL (MINI-SAS)
DATA TRANSFER METHOD : 1.2GB/S BANDWIDTH PER PORT FOR COMBINED THROUGHPUT OF UP TO 9.6GB/S
SIMULTANEOUS CONNECTION : 2 X 4 SAS CONNECTORS
PORT TRANSFER RATE : 1.2 GB/S PER X8 SAS PORT
MAXIMUM CAPACITY : 144TB
MEMORY ADDRESSING : 64-BIT, SUPPORTING SERVERS MEMORY GREATER THAN 4GB
RAID SUPPORT : RAID 0, RAID 1, RAID 5, RAID 10, RAID 50

DISPLAY & GRAPHICS CONTROLLERS :
GRAPHICS CONTROLLER TYPE : INTEGRATED MATROX G200EH2

NETWORK & COMMUNICATION :
NETWORKING : NETWORK ADAPTER – INTEGRATED
INTERFACE (BUS) TYPE : PCI EXPRESS 2.0 X2
ETHERNET PORTS : 2X GIGABIT ETHERNET
ETHERNET CONTROLLER(S) : HP NC361I
DATA LINK PROTOCOL : ETHERNET, FAST ETHERNET, GIGABIT ETHERNET
REMOTE MANAGEMENT CONTROLLER : INTEGRATED LIGHTS-OUT 4
FEATURES : WAKE ON LAN (WOL), PXE SUPPORT
COMPLIANT STANDARDS : IEEE 802.3, IEEE 802.3U, IEEE 802.3AB, IEEE 802.1AS, IEEE 802.3AZ

POWER DESCRIPTION :
DEVICE TYPE : NON-HOT-PLUG POWER SUPPLY
INSTALLED QTY : 1
NOMINAL VOLTAGE : AC 100-240V (50/60 HZ)
POWER PROVIDED : 550 WATT

EXPANSION/ CONNECTIVITY :
EXPANSION BAYS TOTAL (FREE) :
1 (TOTAL) / 1 (FREE) X EXTERNAL 5.25 SLIM LINE
8 (TOTAL) / 8 (FREE) X HOT-SWAP 2.5 SFF

EXPANSION SLOTS TOTAL (FREE) :
2 (TOTAL) / 1 (FREE) X CPU
16 (TOTAL) / 14 (FREE) X DIMM 288-PIN
1 (TOTAL) / 1 (FREE) X PCIE 3.0 X16 – HALF-LENGTH, FULL-HEIGHT
1 (TOTAL) / 0 (FREE) X PCIE 3.0 X8 – LOW-PROFILE
1 (TOTAL) / 1 (FREE) X MICROSD CARD (INTERNAL)

INTERFACES & PORTS :
2 X LAN (GIGABIT ETHERNET) – RJ-45
1 X HP ILO – RJ-45
1 X VGA
1 X USB 2.0 (1 IN FRONT)
3 X USB 3.0 (2 REAR, 1 INTERNAL)

DIMENSIONS & WEIGHT :
WIDTH : 17.1 INCH
DEPTH : 23.9 INCH
HEIGHT : 1.7 INCH
WEIGHT : 22 LBS
